Middle x Ray Screening Machine , Luggage X Ray Security Machine

چین Middle x Ray Screening Machine , Luggage X Ray Security Machine تامین کننده

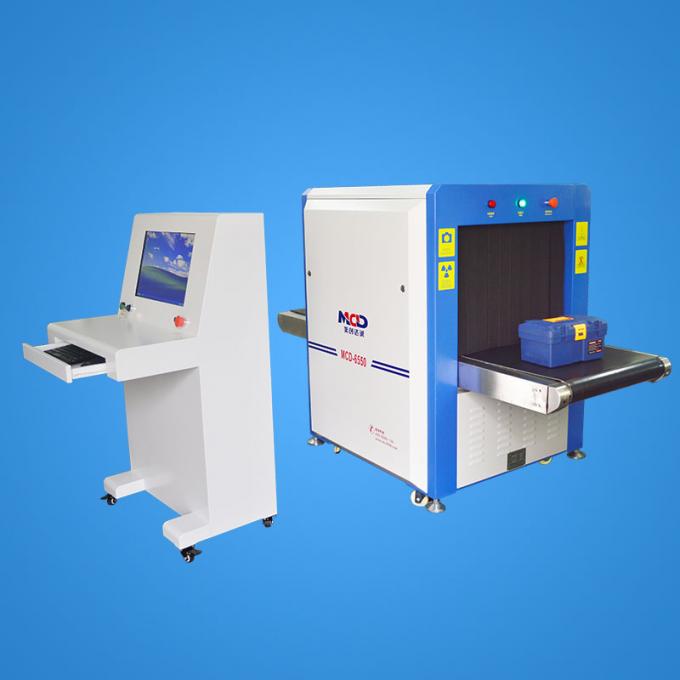

تصویر بزرگ :  Middle x Ray Screening Machine , Luggage X Ray Security Machine

جزئیات محصول:

Place of Origin: China
: MCD
: ISO , CE
Model Number: MCD-6550

پرداخت:

Minimum Order Quantity: 1 set
: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
توضیحات محصول جزئیات
Tunnel Size:: 650(W)*500(H)mm Conveyor Speed:: 0.22m/s
Conveyor Max Load:: 170kg Dose per Inspection:: <1.4uGy/h
Resolution:: <0.0787mmMetal Wire Penetrate resolution:: Dia 0.254mm
Penetration:: 34mm Steel Film Safety:: Guarantee ISO1600 Film
X-ray Leakage:: <0.05 uGy/h (at a distance of 5cm From external housing) Anode Voltage:: 100~160Kv



Middle x Ray Screening Machine , Luggage X Ray Security Machine



Product Parameters:



General Specification


  • 1. Tunnel Size: 650(W)*500(H)mm
  • 2. Conveyor Speed: 0.22m/s
  • 3. Conveyor Max Load: 170kg
  • 4. Dose per Inspection: <1.4uGy/h
  • 5. Resolution: <0.0787mmMetal Wire
  • 6. Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
  • 7. Penetrate resolution:Dia 0.254mm
  • 8. Penetration: 34mm Steel
  • 9. Film Safety: Guarantee ISO1600 Film
  • 10.. X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)


X-ray Generator


  • 1. Generate direct: Upward
  • 2. Generate angle: 80 degree
  • 3. Anode Voltage: 100~160Kv
  • 4. Anode power: 0.4 to 1.2mA
  • 5. Cooling / Duty Cycle: Oil Cooling /100%


Image System


  • 1. X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • 2. Monitor: High Resolution Color, LCD Accord, 17 inch
  • 3. Detector:2
  • 4. Color display:full color
  • 5. Image Processing: Edge enhancement, image strengthening,
  •      image lightening,reducing  darkening, image returning, image retrieval.
  • 6. Image Grey Level: 4096
  • 7. Image Max Resolution: 1024 * 1280 pixel
  • 8. Image Processing: 24bit for processing real time
  • 9. Image storage: Storage 60000 pictures in real time
  • 10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge,
  •       Whole screen continuous observation
  • 11. Multi-energetic distinguish objects: organic objects in orange,
  •       inorganic objects in blue, mixture in green
  • 12. High-energy/low energy:switch from high energy to low energy
  • 13. Assist to detect drug and explosive powder
  •

Installation Data

  • 1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2. Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
  • 3. Operation Power:220AVC/(±10)50Hz±3Hz
  • 4. Power Consumption:1.0KW(Max)
  • 5. Noise: <58 dB



Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked

eye can not see where the liquid is also very obvious object display.Used in the factory testing of security

products and business units such as: electronic factories, shoe factories, toy factories, courts,

railway stations,and event bag, line security management package



Middle x Ray Screening Machine , Luggage X Ray Security Machine

MCD-6550 User Manual.pdf

MCD-6550 baggage scanner.pdf
